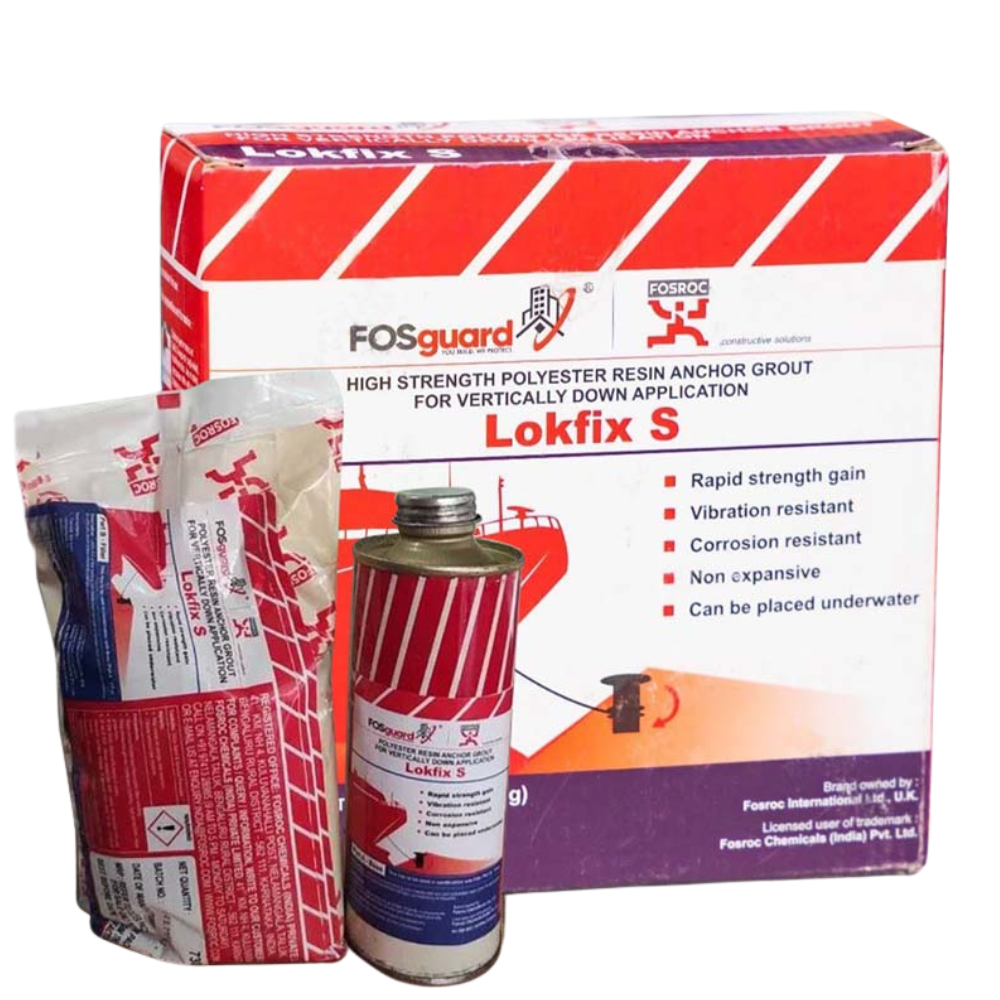

Fosroc Lokfix S

By Fosroc Limited

Among the trusted names in construction chemicals, Fosroc Limited stands out for innovation and reliability. One of its high-performance anchoring solutions is Fosroc Lokfix S, a premium polyester resin grout designed for strong, durable, and corrosion-resistant anchoring applications.

Product Overview

Fosroc Lokfix S is a two-component, pre-measured polyester resin anchoring grout. Once hardened, it delivers consistent, high-strength anchorages with reliable and reproducible performance values.

Applications

Lokfix S is used for high-strength, corrosion-resistant anchoring of bolts and reinforcement bars (10–51 mm diameter) into:

• Concrete

• Rock

• Masonry

• Brickwork

Ideal for applications requiring rapid installation and early load application, including:

• Reinforcement starter bars

• Foundation bolts & base plates

• Balustrades, barriers & safety fences

• Railway tracks

• Tie-back anchors

• Reinforcement dowelling abutments

• Ground anchors for towers & cranes

• Dock sills

Key Advantages

• Rapid strength gain

• Vibration resistant

• Corrosion resistant

• Non-expansive

• Suitable for underwater placement

Versions Available

Three pre-measured polyester resin grout variants are available:

• Lokfix L (Large Aggregate) – For holes exceeding bar diameter by 25–50 mm

• Lokfix S (Small Aggregate) – For hole/bar diameter difference less than 25 mm

• Lokfix P (Pumpable Grade) – Designed for overhead or horizontal holes; thixotropic to reduce grout flow

Standards & Specifications

Tested in accordance with:

• BS 4551

• BS 5080

• BS 2782

Technical Properties

Specific Gravity:

• Lokfix S: 1.9 g/cc

• Lokfix P: 2.9 g/cc

Design Criteria

The selection of Lokfix version depends on ambient temperature and anchor conditions. The ultimate bond strength achieved depends on:

• Strength of host material

• Length of resin bond to bar

• Hole preparation and formation

• Type and dimension of reinforcement bar

The minimum depth of installation for Type 1 rebar bolts may be calculated in accordance with BS 8110 to ensure shear stress remains within permissible limits.

Application Instructions

Selection

Choose the appropriate version based on anchor conditions and hole/bar diameter relationship.

Mixing

• Mix a complete pack of resin and catalyzed filler in one operation.

• Mechanical mixing is recommended.

• Mix until smooth and uniform consistency is achieved.

• Use within the gel time.

• Do not mix partial pack components.

Packs are designed for practical and economical application volumes.

Packaging

• Lokfix S/P: 0.5 L and 2.5 L packs

Storage

Store below 25°C in original unopened containers.
Shelf life: 6 months when stored properly away from high temperatures.

Precautions

Fire Resistance & Creep

At operating temperatures above 40°C, creep under sustained load may become significant. Resin anchors should not be used where structural load-bearing performance must be maintained during fire exposure.

Flash Point

• Lokfix S, L, P: 29°C

• Nitoflor Sol: 33°C

Fire Safety

Fosroc Lokfix S polyester resin grout is flammable.

• Ensure proper ventilation in confined areas.

• No naked flames.

• Do not smoke during application.
