Hilti HIT-RE 500 V3 – High-Performance Epoxy Anchor

Engineered for the most demanding anchoring applications. Built for strength. Trusted worldwide.

Discover HIT-RE 500 V3, a top-tier injectable epoxy adhesive designed for heavy-duty concrete anchoring. ICC-ES approved, seismic rated, and built for ultimate bond performance, this latest-generation system delivers unmatched reliability in structural applications.

Product Overview

HIT-RE 500 V3 represents the pinnacle of adhesive anchoring technology. Developed for post-installed rebar connections, threaded rods, and structural steel anchoring, it performs exceptionally in both cracked and uncracked concrete.

Designed for extreme conditions—including seismic zones, wet or water-filled holes, and deep embedment applications—this high-performance epoxy anchor is globally trusted across infrastructure, commercial, and industrial projects.

With approvals such as ICC-ES (AC308) and ETA-16/0142, it meets the most rigorous international standards for safety and structural integrity.

Key Features & Benefits

✔ Superior Load Performance

Delivers the highest bond strength within Hilti’s adhesive anchor range—ideal for heavy-duty structural anchoring.

✔ Seismic Approved (Categories A–F)

Compliant with AC308 and AC133 for dynamic and seismic loading applications.

✔ Extended Working Time

Approximately 30 minutes at 23°C—perfect for deep embedment and hot weather installations.

✔ Moisture-Tolerant Formula

Performs reliably in wet concrete, water-filled, and diamond-drilled holes.

✔ Exceptional Versatility

Compatible with rebar, threaded rods, and structural steel components.

✔ Fire Resistance Certified

Rated up to R120 under EN 1363-1 / ISO 834 fire exposure standards.

✔ Approved for Rebar Doweling

Suitable for load-bearing post-installed rebar connections.

✔ Extended Shelf Life

Up to 24 months when stored properly below 25°C.

Applications

HIT-RE 500 V3 is widely used in:

• Structural steel connections

• Concrete column & beam retrofitting

• Heavy equipment and machine base anchoring

• Façade & curtain wall installation

• Post-installed rebar for slabs, beams, columns & shear walls

• Infrastructure projects (bridges, tunnels, dams)

• Seismic retrofitting (Zones A–F)

Technical Specifications

*Depends on embedment depth and concrete grade.

Approvals & Certifications

• ICC-ES Report ESR-3814 – Adhesive anchor for threaded rod & rebar (AC308, ACI 318)

• ETA-16/0142 – European Technical Approval

• Seismic Category C2 qualification

• LEED & Green Building compliant (Low VOC)

• Fire Rated – R120 performance

Installation Procedure

1. Drill
Use a hammer or diamond drill bit to achieve specified diameter and depth.

2. Clean
Thoroughly clean the hole using the brush–blow–brush–blow method.

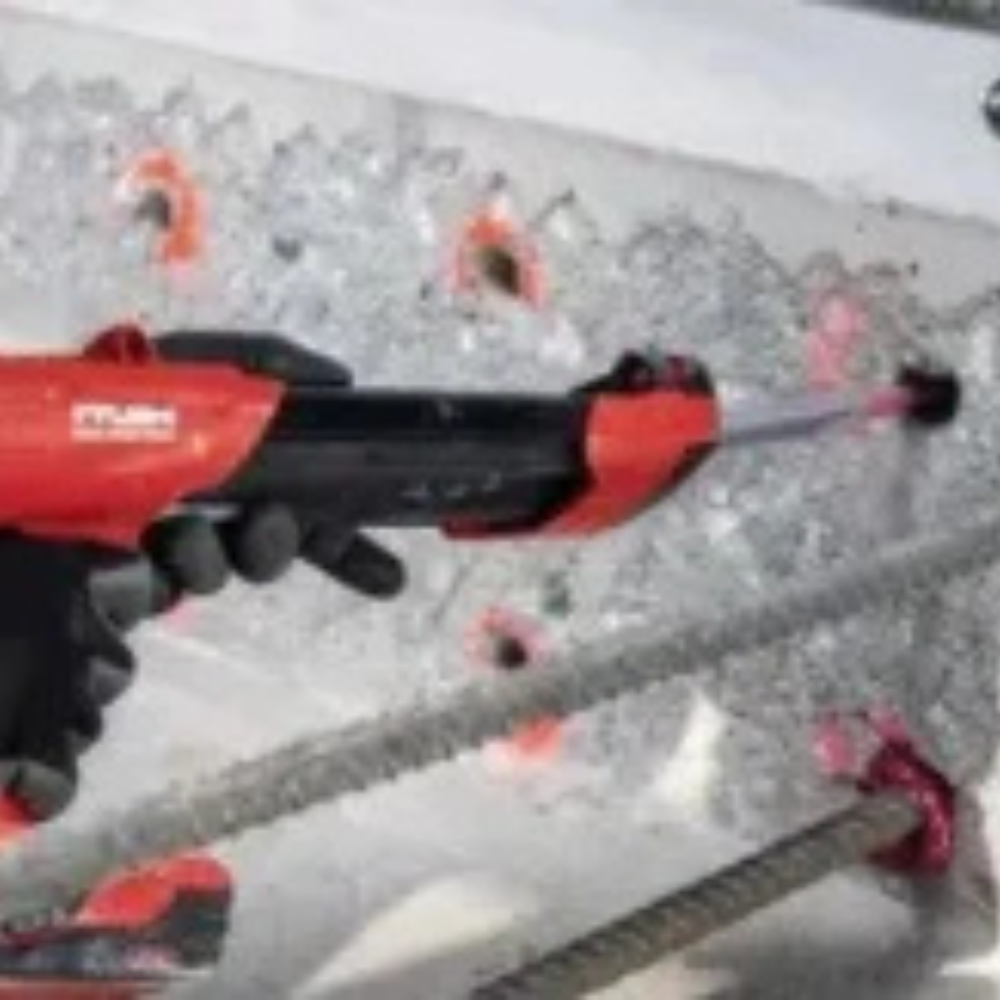

3. Inject
Dispense adhesive using the correct dispenser and static mixer. Discard the first 3–4 inches of mixed resin.

4. Insert Anchor
Insert rebar or threaded rod slowly while rotating for even resin distribution.

5. Cure
Allow proper curing time based on ambient temperature.

6. Inspect & Load
Once fully cured, the anchor is ready for full design loads.

Tip: Use Hilti PROFIS Engineering Suite for accurate anchoring calculations and design compliance.

Design Considerations

• Designed in accordance with ACI 318, EN 1992-4, TR069

• Check cracked vs. uncracked base material conditions

• Maintain required edge distances and spacing

• Extend curing time in wet, cold, or sub-zero environments

Storage & Handling

• Store between +5°C and +25°C in a dry location

• Protect from direct sunlight and heat

• Use a new static mixer for partially used cartridges

Health & Safety

• Wear gloves, safety glasses, and appropriate PPE

• Avoid skin contact with resin and hardener

• Refer to the official Safety Data Sheet (SDS) for full information
