Product Details

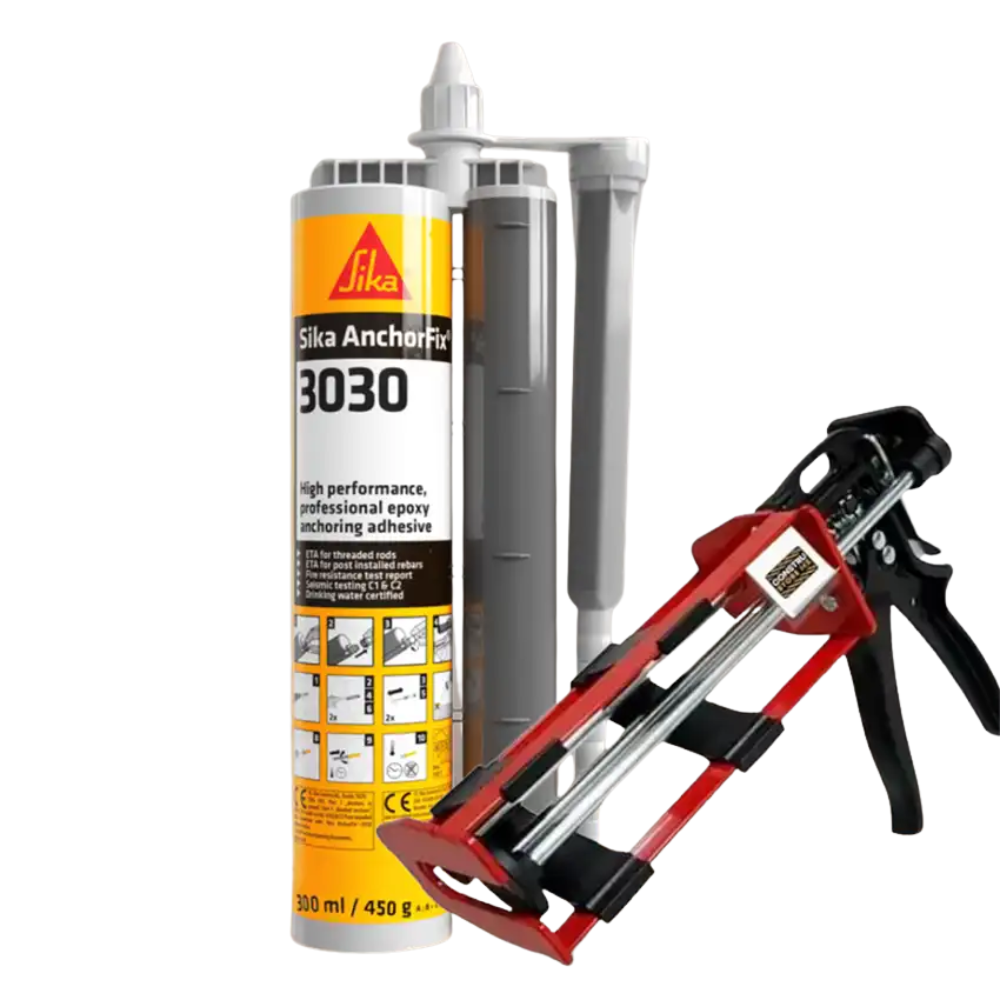

Sika AnchorFix-3030

High-Performance Epoxy Anchoring Adhesive for Rebar & Threaded Rods

High Strength | Seismic Approved | Fire Rated | Structural Grade

Product Overview

Sika AnchorFix®-3030 is a premium, two-component, epoxy-based thixotropic chemical anchoring adhesive engineered for superior structural performance in demanding construction environments.

Specifically developed for post-installed rebar and threaded rod connections, it delivers exceptional load-bearing capacity in both cracked and uncracked concrete, even under damp conditions.

From structural reinforcements to metal fabrications and heavy-duty machinery anchoring, this advanced epoxy system ensures maximum strength, durability, and long-term reliability.

Key Features & Advantages

• ETA Approved for cracked and uncracked concrete

• Exceptional high load-bearing capacity

• Fire resistance certified

• Seismic approved – Categories C1 & C2

• Styrene-free formulation for low odor and safer indoor use

• Shrinkage-free curing for precision anchoring

• Extended open time for flexible application

• Superior adhesion on multiple substrates

• Suitable for contact with drinking water (WRAS/NSF equivalent)

• Low emissions – LEED v2009 IEQc 4.1 compliant

Primary Applications

Structural Applications

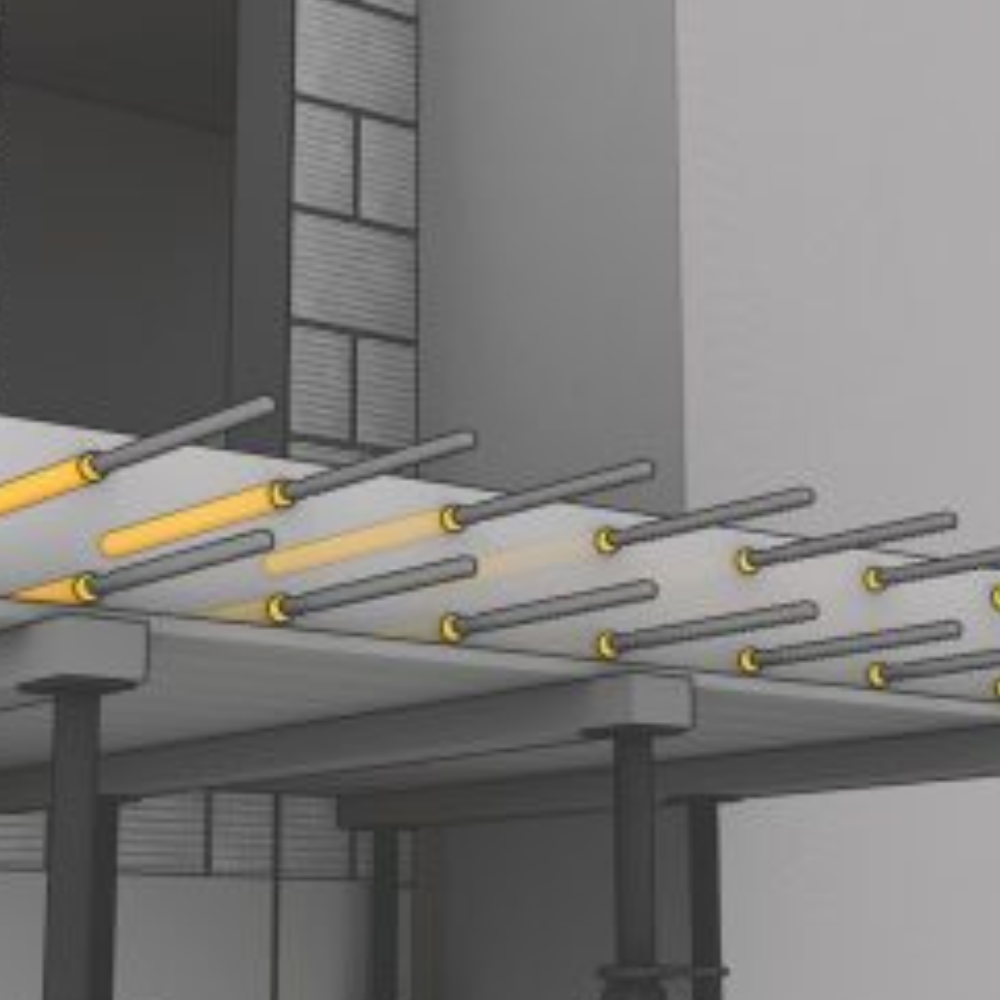

• Post-installed rebar connections (new & refurbishment projects)

• Threaded rod and bolt anchoring

• Heavy-duty fixings in structural concrete

Metalworks & Carpentry

• Handrails, railings, balustrades

• Window and door frame installations

• Specialized fastening systems

Compatible Substrates

• Cracked & uncracked concrete

• Solid and hollow masonry

• Natural and reconstituted stone

• Solid rock

• Wood

Technical Data

Packaging Options

• 385 ml Dual Cartridge – 12 pcs/box

• 585 ml Dual Cartridge – 12 pcs/box

Standard sealant guns are compatible with 385 ml cartridges.

Certifications & Compliance

• CE Marked (ETAG 001 Part 1 & 5)

• ETA-17/0694 for bonded anchors

• Fire evaluation (EN 1991-1-2 – CSTB Test MRF 26072904/C)

• Seismic approval – Categories C1 & C2

• LEED v2009 IEQc 4.1 compliant – Low-emitting materials

System Accessories

For safe and efficient installation, Sika provides:

• Static mixers and nozzles

• Perforated sleeves (for hollow substrates)

• Hybrid & steel hole-cleaning brushes

• Sika® Cleaning Pump

• Flexible and straight extensions

Mixing Instructions

1. Remove cartridge cap.

2. Attach static mixer nozzle.

3. Insert into standard application gun.

4. Discard initial material until uniform color appears.

5. Replace nozzle if resin cures during interruption.

Mix Ratio (A:B): 3:1 by volume

Application Procedure

1. Drilling & Cleaning

• Drill to required diameter and depth.

• Clean with oil-free compressed air (minimum 2 times).

• Brush with steel brush (minimum 2 times).

• Repeat air and brushing process for optimal adhesion.

2. Injection

• Inject adhesive from bottom upward using static mixer.

• Insert threaded rod or rebar with rotary motion within open time.

• Ensure excess adhesive flows out to confirm full embedment.

3. Curing Time (Based on Temperature)

Do not disturb or load anchors during curing period.

Cleaning

Clean tools immediately using Sika® Colma Cleaner.
Hardened material must be removed mechanically.

Important Notes & Limitations

• Always perform a bonding test on natural stone to prevent staining.

• Not suitable for water-filled holes.

• For hollow block substrates, use Sika AnchorFix®-1.

• Environmental and structural variables may affect performance. Consult Sika technical services for project-specific guidance.

Health, Safety & Environment

• Styrene-free for improved indoor air quality.

• Refer to the latest Safety Data Sheet (SDS) for safe handling.

• Dispose of packaging according to local environmental regulations.
