SikaGrout-214 BD Non-Shrink Grout | High-Strength Precision Grout in Bangladesh
Product Description
SikaGrout-214 BD is a high-performance, cement-based, non-shrink, expanding precision grout designed for demanding structural and mechanical applications. This one-component, ready-to-use dry powder only requires the addition of clean water to achieve a flowable or pourable consistency, making it ideal for high-load and high-precision installations.
Engineered with dual-stage expansion technology, SikaGrout-214 BD compensates for shrinkage at both plastic and hardened stages, ensuring full bearing contact, excellent load transfer, and long-term durability under static, dynamic, impact, and vibration loads.
Widely used across industrial plants, power stations, bridges, infrastructure projects, precast construction, and heavy machinery foundations, this grout offers rapid strength development, high final compressive strength, and excellent bonding to concrete and steel. It is chloride-free, non-corrosive, and resistant to oil, frost, fire, chemicals, and industrial gases, ensuring safe and durable performance even in aggressive environments.
Applications
SikaGrout-214 BD is suitable for both new construction and rehabilitation projects, including:
-

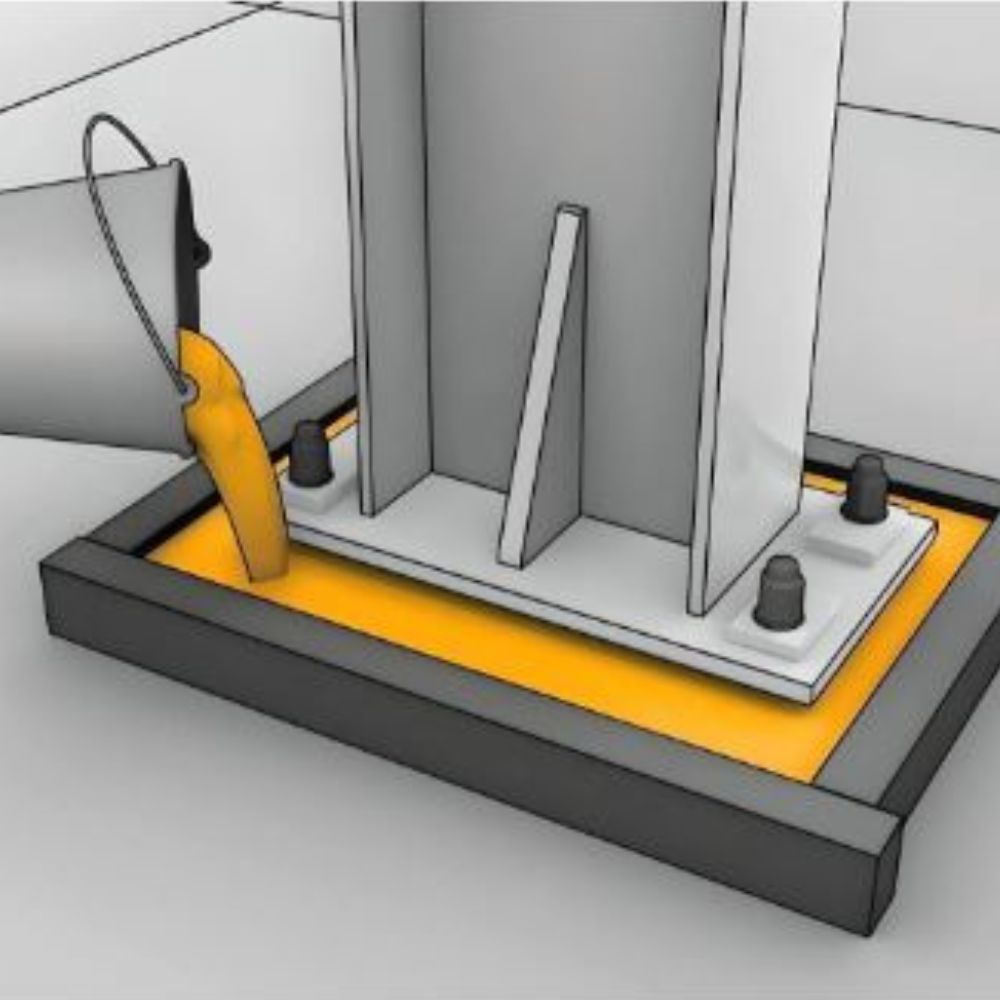

Precision grouting of base plates, sole plates, and bearing plates
-
Grouting of turbines, compressors, pumps, boilers, generators, and heavy machinery
-
Anchor bolt and dowel grouting in concrete
-
Precast column joints and connections
-
Filling voids, cavities, and gaps in concrete structures
-
Post-installed fixings and penetrations
-
Structural grouting in areas subjected to vibration and dynamic loading
Key Features & Benefits
-
Non-shrink & expanding grout (dual-stage shrinkage compensation)
-
High early and ultimate compressive strength
-
Excellent flowability without segregation or bleeding
-
Strong bond to concrete and steel
-
Impact and vibration resistant
-
Chloride-free and non-corrosive
-
Resistant to frost, oil, fire, and industrial chemicals
-
Adjustable consistency (flowable or pourable)
-
Suitable for restrained conditions
-
Operating temperature resistance: 0°C to 200°C
Product Information
| Property | Details |
|---|---|
| Product Type | Cementitious non-shrink precision grout |
| Composition | Cement, special additives, graded aggregates |
| Appearance | Grey powder |

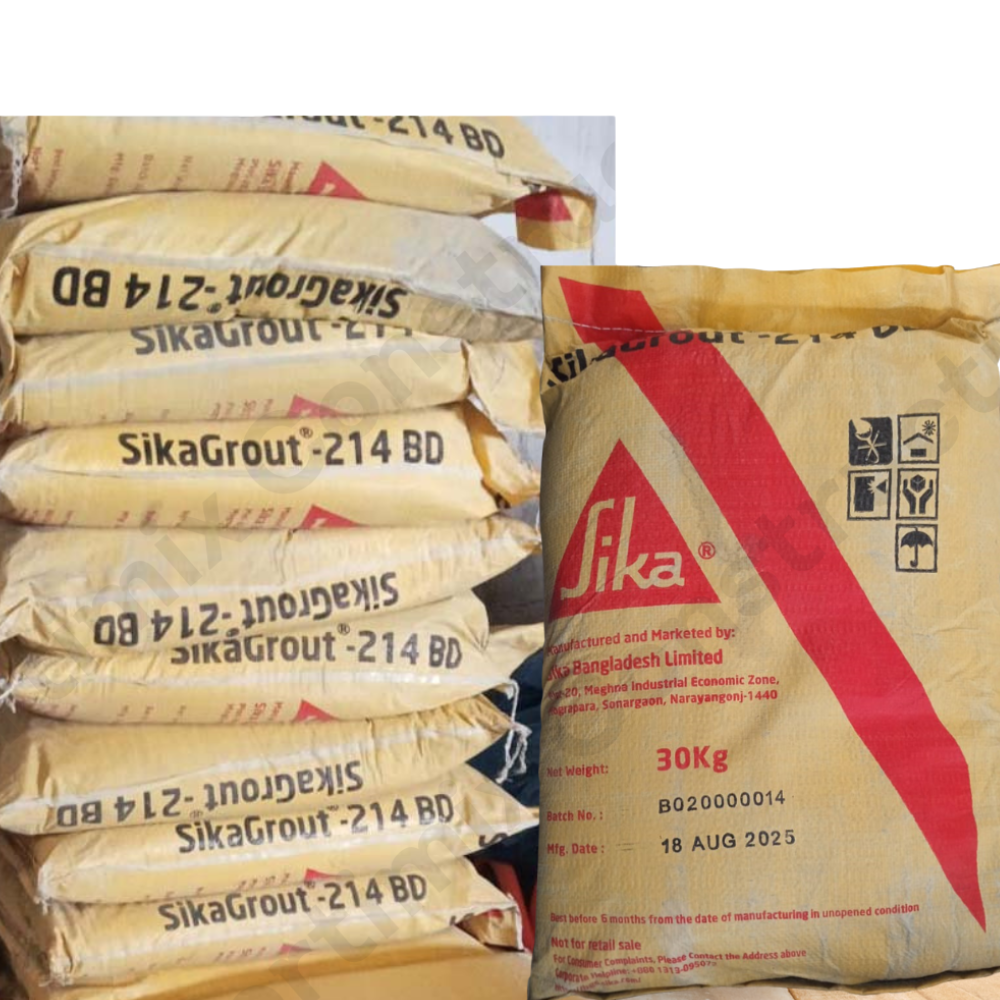

| Packaging | 30 kg bag |
| Shelf Life | 6 months (unopened) |
| Storage | Dry, cool conditions in original sealed packaging |
| Standard | ASTM C1107 compliant |
| Maximum Grain Size | 2.36 mm |
| Bulk Density | 1.15 – 1.60 kg/L (dry powder) |
Technical Data
Mechanical Properties
| Property | Test Standard | Result / Value |
|---|---|---|
| Compressive Strength (1 Day, +30°C) | ASTM C109 | ≥ 25 N/mm² |
| Compressive Strength (3 Days, +30°C) | ASTM C109 | ≥ 35 – 36 N/mm² |
| Compressive Strength (7 Days, +30°C) | ASTM C109 | ≥ 45 – 50 N/mm² |
| Compressive Strength (28 Days, +30°C) | ASTM C109 | ≥ 65 N/mm² |
| Flexural Strength (7 Days) | ASTM C293 | ≥ 7 N/mm² |
| Flexural Strength (28 Days) | ASTM C293 | ≥ 9 N/mm² |
| Tensile Adhesion / Bond Strength (7 Days) | ASTM C882 | ≥ 12 N/mm² |
| Bond Strength (28 Days) | EN 1542 | ≥ 2.0 N/mm² |
| Splitting Tensile Strength (28 Days) | ASTM C496 | ≥ 3.5 N/mm² |
| Modulus of Elasticity | ASTM C469 | ≈ 37,000 N/mm² |
| Expansion | ASTM C1090 | Up to 4% |
Physical Properties
| Property | Unit | Value |
|---|---|---|
| Appearance | – | Grey Powder |
| Maximum Grain Size | mm | 2.36 |
| Bulk Density (Dry Powder) | kg/L | 1.15 – 1.60 |
| Fresh Mortar Density | kg/m³ | 2000 – 2300 |
| Flowability (Flow Cone) | mm | ≥ 200 |
| Consumption | kg/m³ | ~1950 |
| Pot Life (+30°C) | minutes | ~30 |
Application Parameters
| Parameter | Value |
|---|---|
| Mixing Ratio (Flowable) | 4.2 – 4.8 L water / 30 kg |
| Mixing Ratio (Pourable) | 3.9 – 4.2 L water / 30 kg |
| Recommended Layer Thickness | 20 – 100 mm |
| Minimum Layer Thickness | 10 mm |
| Ambient Temperature | +5°C to +40°C |
| Substrate Temperature | +5°C to +40°C |
| Temperature Resistance | 0°C up to 200°C |
Standards & Compliance
-
Product Standard: ASTM C1107
-
Chloride Content: Chloride Free
-
Corrosivity: Non-corrosive to steel & anchor bolts
Health, Safety & Environment
SikaGrout-214 BD is safe when handled properly. Refer to the Material Safety Data Sheet (MSDS) for detailed health, safety, and disposal guidelines.
Why Choose SikaGrout-214 BD?
SikaGrout-214 BD ensures precision alignment, maximum load transfer, and long-term durability. Its proven performance in industrial, commercial, and infrastructure projects makes it one of the most trusted grouting materials in Bangladesh.
Keywords: Non-shrink grout Bangladesh, Sika grout price BD, cementitious grout for base plate, high-strength precision grout, machine foundation grouting, anchor bolt grout, ASTM C1107 grout, industrial grouting solution.
